DCAP-IAE is a new type of audio processor. It can support up to 24 channels of analog output (16-channel output + 6-channel divided-frequency output + 2-channel auxiliary output), in addition to the side surround speakers and the rear surround speakers, the layout scheme also supports the top surround speakers. With its superior EQ performance and AI (Artificial Intelligence)-based AUTO-EQ capability, DCAP-IAE can achieve extreme immersive audio experience.




Figure 1. DCAP-IAE


1.Advantages of DCAP-IAE

1)  Support up to 24 channels of analog output (16-channel output + 6-channel divided-frequency output + 2-channel auxiliary output), compatible with 5.1/7.1/9.1 audio format;

2)  The high-resolution and multi-sampling-rate EQ performance;

32-band and 3-band frequency divider is integrated, no need to purchase a frequency divider separately;

4With AI (Artificial Intelligence)-based AUTO-EQ capability, it can realize rapid installation;

5Web user interface for remote configuration and control;

6Support TMS/NOC control.



2.Typical Application

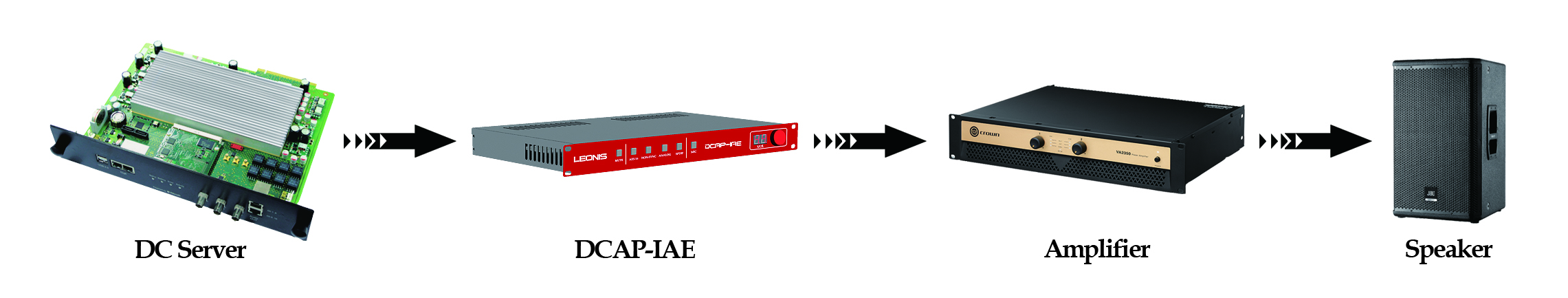

Figure 2.Typical Application



3.DCAP-IAE Parameters

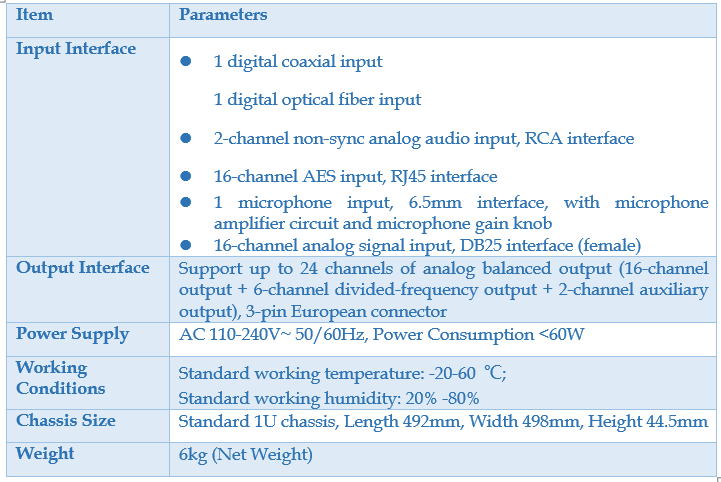

Figure 3.Parameters


4.AUTO-EQ based on Artificial Intelligence

Based on artificial intelligence (AI), AUTO-EQ is used to implement the automatic equalization adjustment of DCAP-IAE, which can save a lot of manual time.

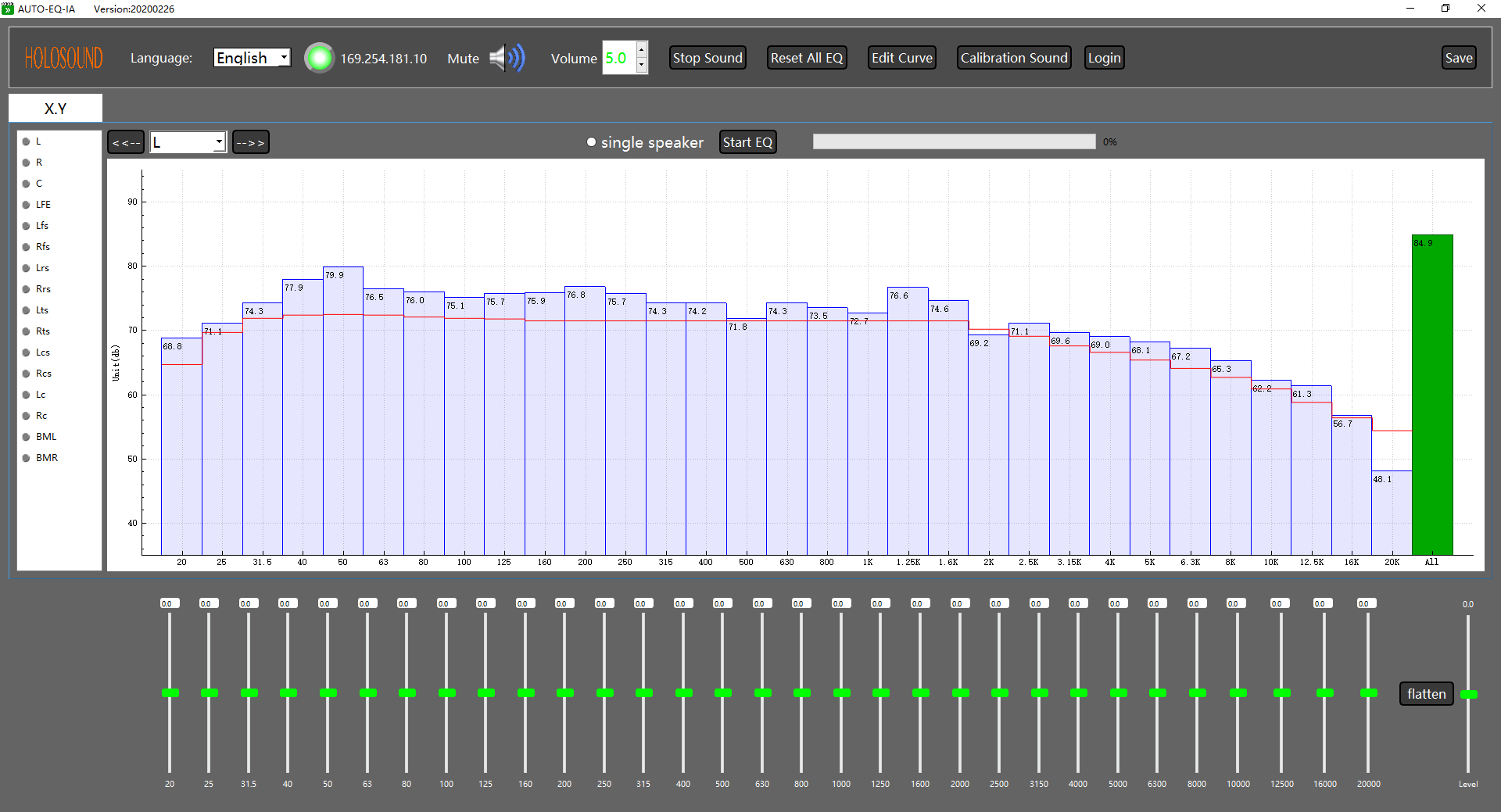

Figure 4.Before of AUTO-EQ

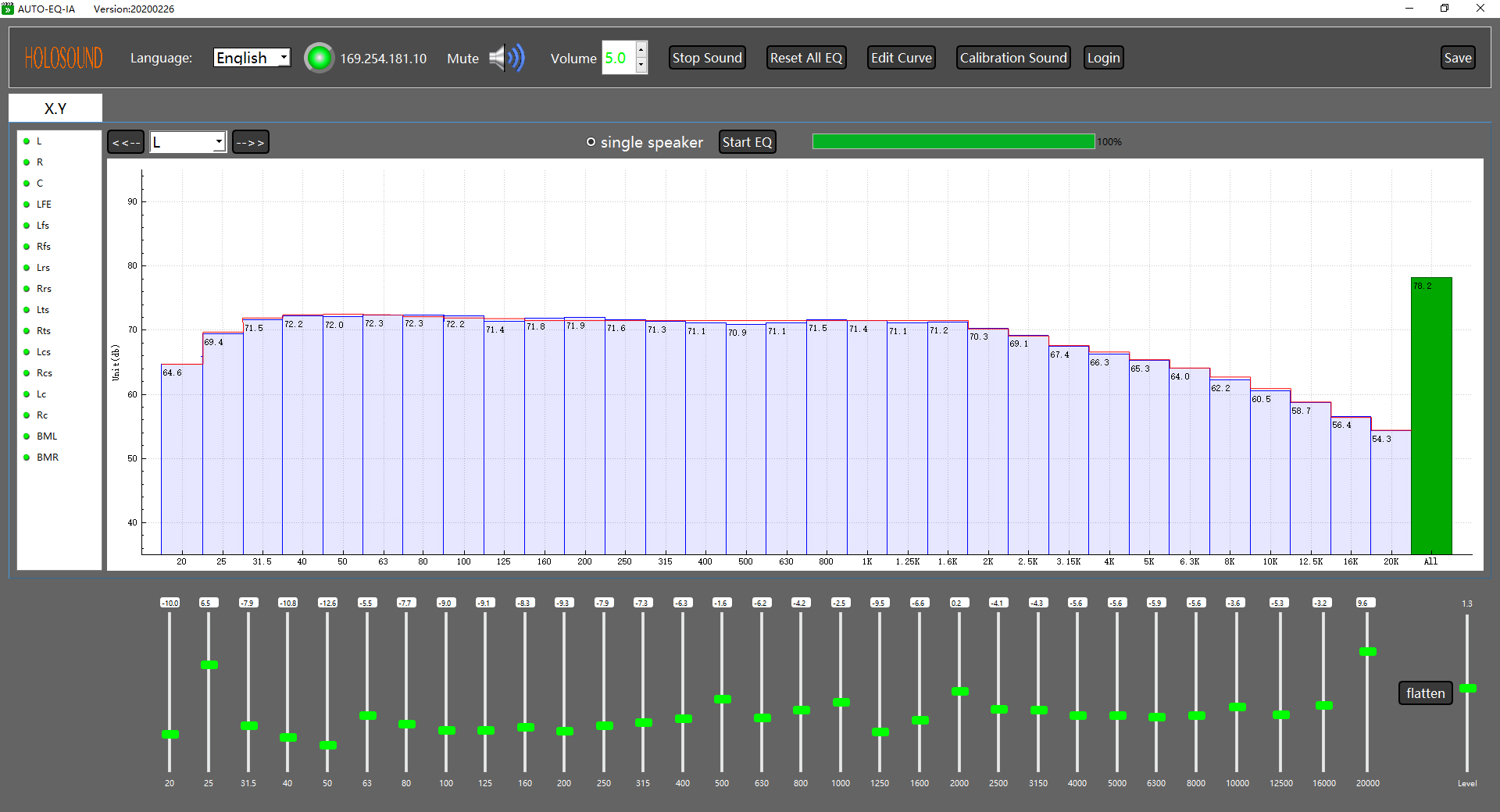

Figure 5.Before of AUTO-EQ
