The network audio (AOIP) projection equipment for ATMOS includes the network audio digital-to-analog converter DAC-2110 and the multi-channel digital surround amplifier SMA-2110 , which is used in conjunction with Dolby CP850 and IMS3000 to achieve immersive sound effects .

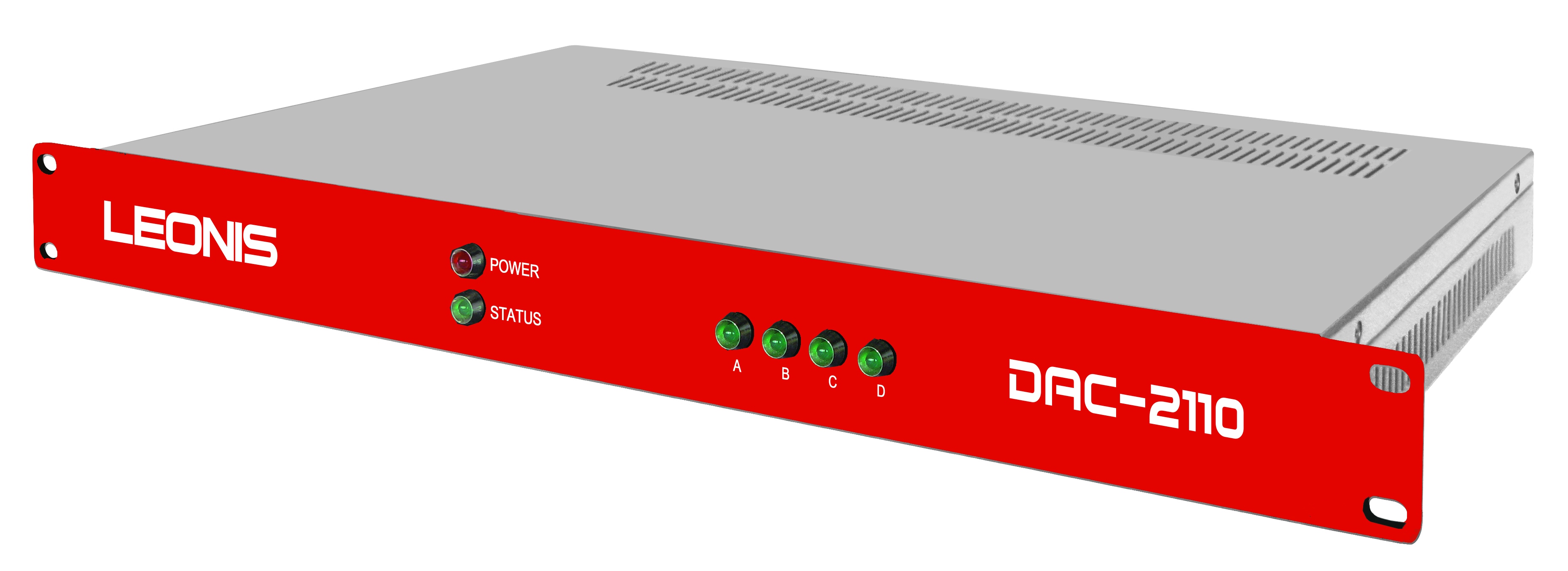

1. AOIP Digital-to-Analog Converter DAC-2110 for ATMOS

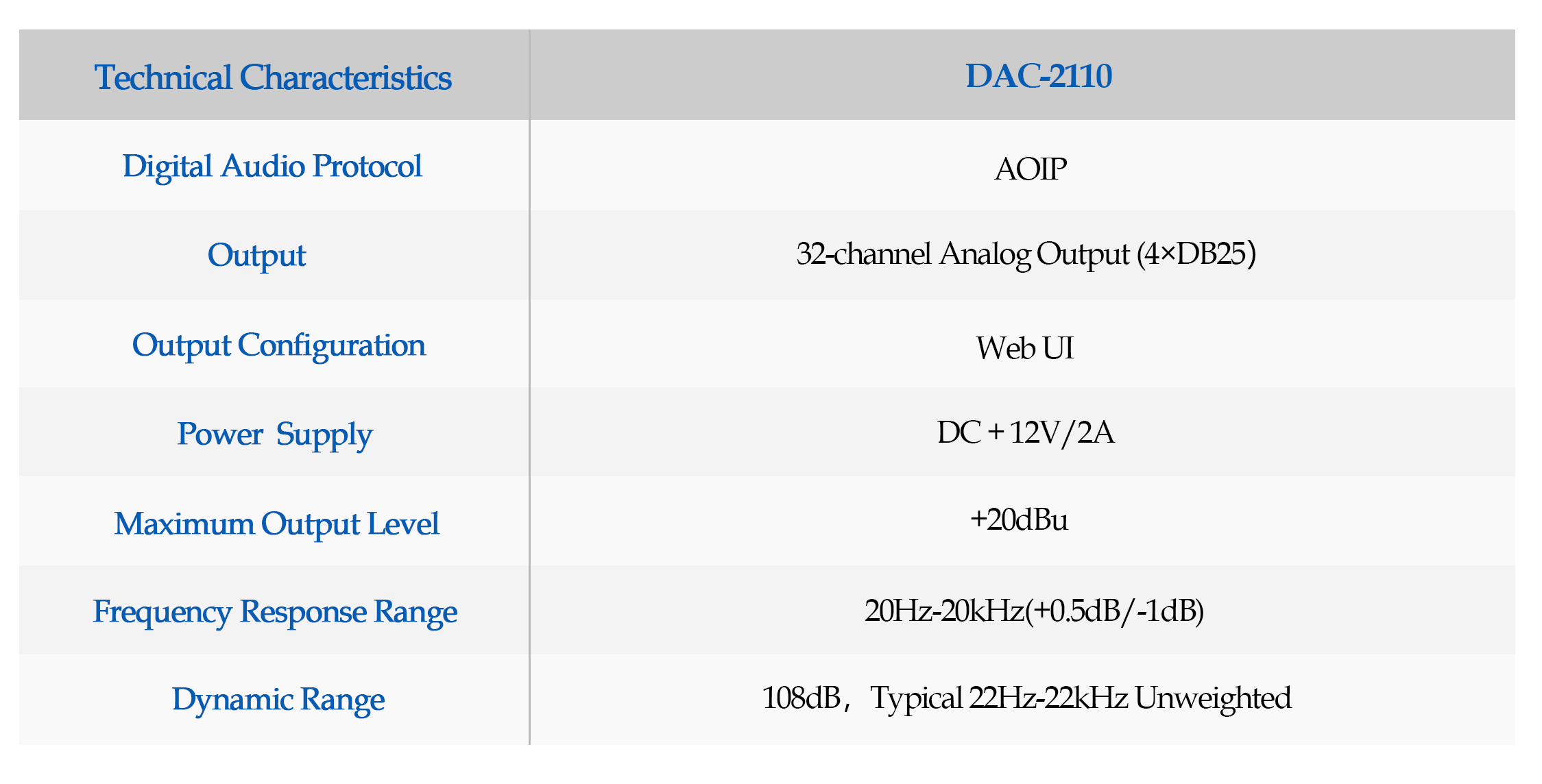

Technical Parameters

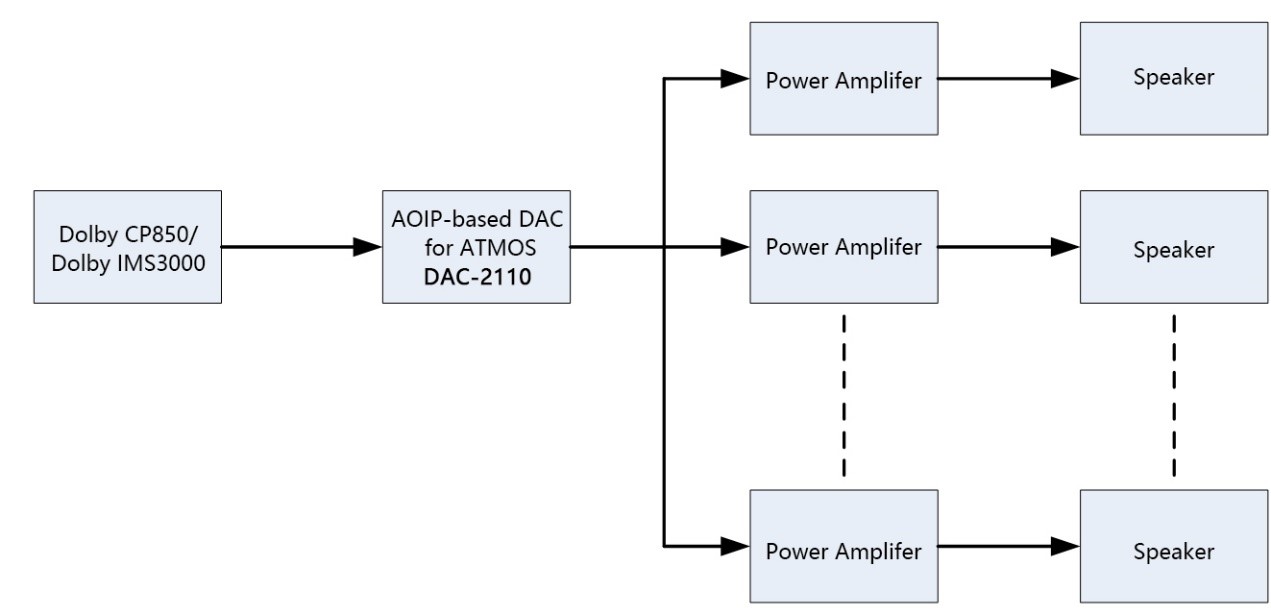

Typical Application

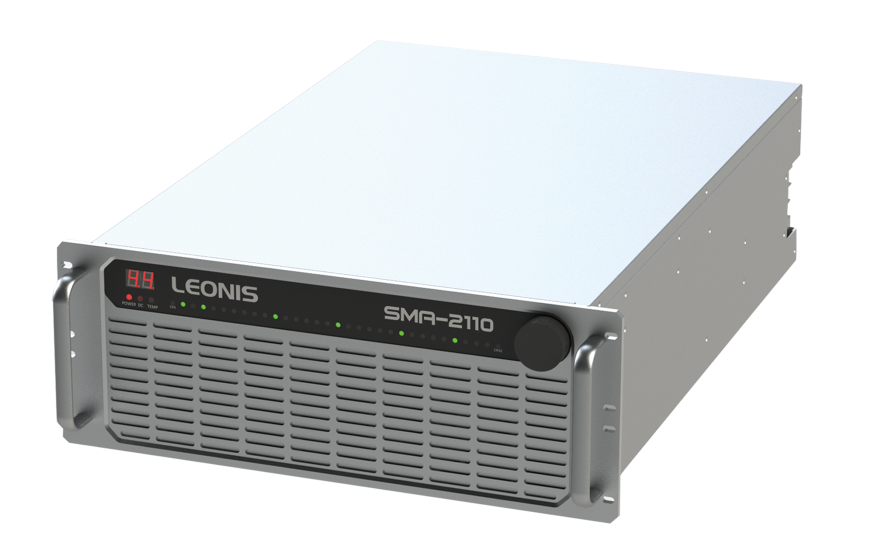

2. AOIP multi-channel digital surround power amplifier SMA-2110 for ATMOS

The immersive audio digital surround amplifier SMA-2110 adopts AOIP input mode, and the maximum output is 32 channels. Through the daisy chain mode, multiple SMA-2110 can be connected to the corresponding audio processor to achieve multiple channels audio amplified.

Main advantages

1) Highly integrated, 32-channel analog amplified signal output;

2) AOIP digital input;

3) The maximum output power of a single channel is 300W, and the bridge output power is 1100W;

4) Ultra-high power output, suitable for theater application scenarios;

5) It has a perfect protection mechanism, including overcurrent protection, overvoltage protection, and overtemperature protection;

6) The volume gain, status display, BTL-PBTL mode switch of each channel can be adjusted through NOC;

7) 4U chassis, saving cabinet space.

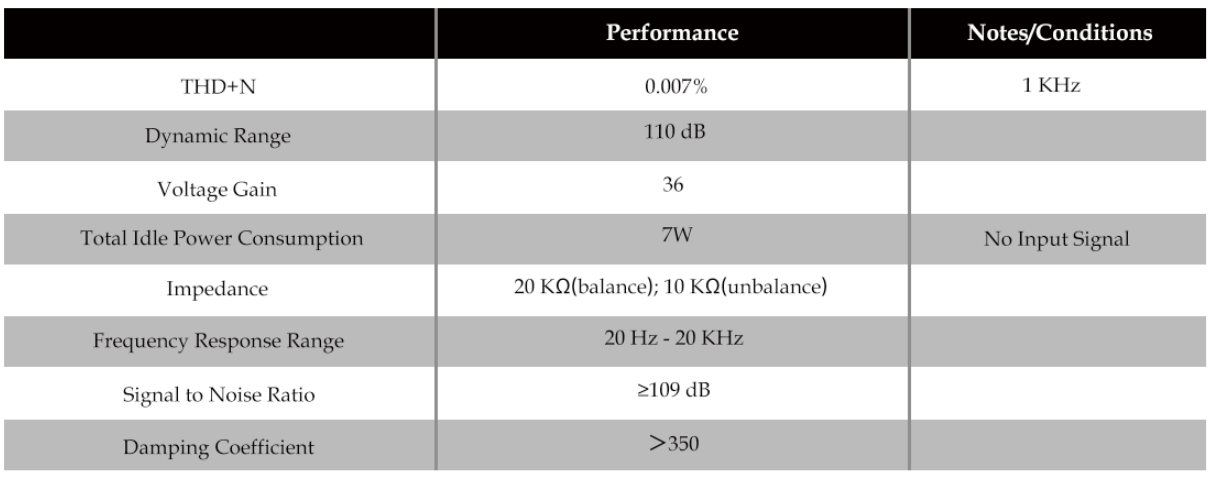

Technical Parameters
