DCAP-OBIA-EAH is an audio processor that based on object technology . It is divided into DCAP-OBIA-EAH16 (16-channel analog output) and DCAP-OBIA-EAH32 (32-channel analog output). It supports channel, object and sound scene analysis and restoration capabilities.

In addition to side surround speakers and rear surround speakers, the layout also supports top surround speakers and bottom surround speakers. With its superior EQ performance and AI (Artificial Intelligence)- based AUTO-EQ capability, DCAP-IAE can achieve extreme immersive audio experience.

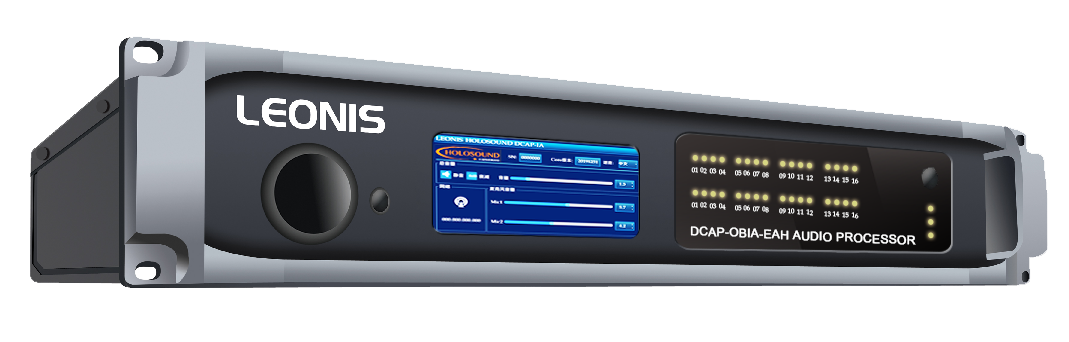

Figure 1. DCAP-OBIA-EAH

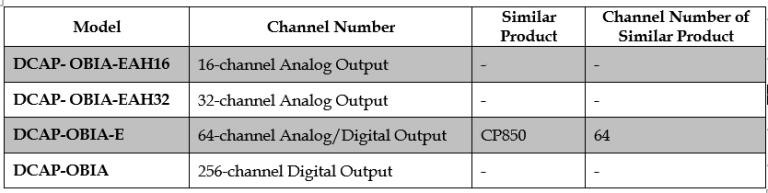

1.DCAP-OBIA-EAH and DCAP-OBIA

2. The Features of DCAP-OBIA-EAH

1> Touch screen front control panel;

2> DCAP- OBIA-EAH16 supports 16-channel analog output;

3> DCAP- OBIA-EAH32 supports 32-channel analog output;

4> Support multiple audio formats, such as LEONIS HOLOSOUND and other SMPTE IA technologies;

5> With AI (Artificial Intelligence)-based AUTO-EQ capability, it can realize rapid installation;

6> The high-resolution and multi-sampling-rate EQ performance;

7> With expansion slot, upgradable to DCAP-OBIA-E;

8> Web user interface for remote configuration and control, can be connected with TMS/NOC

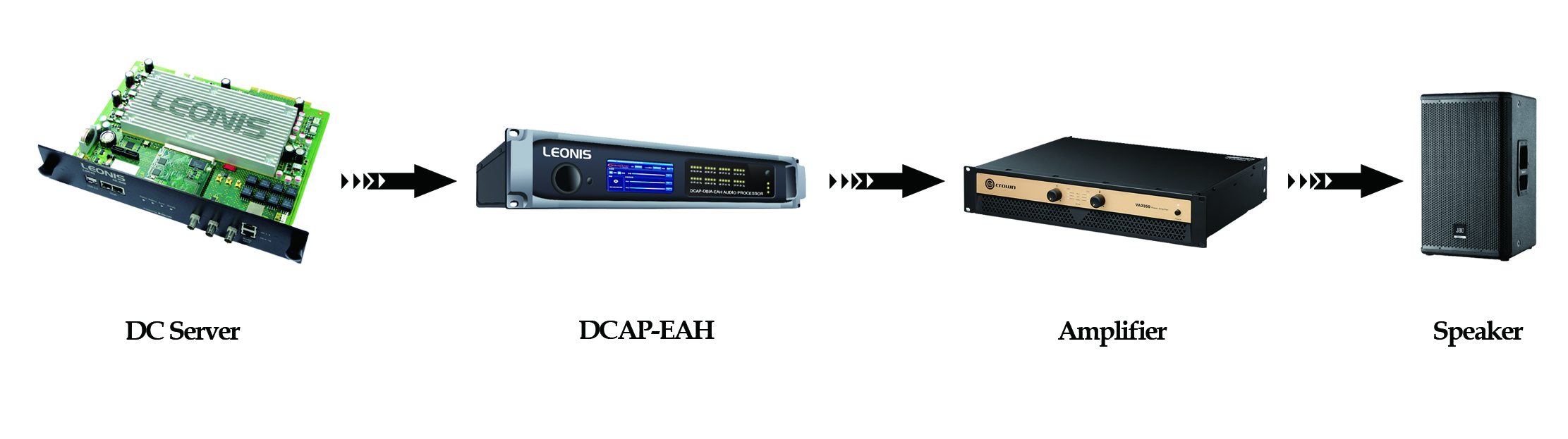

3. Typical Application

Figure 2.Typical Application

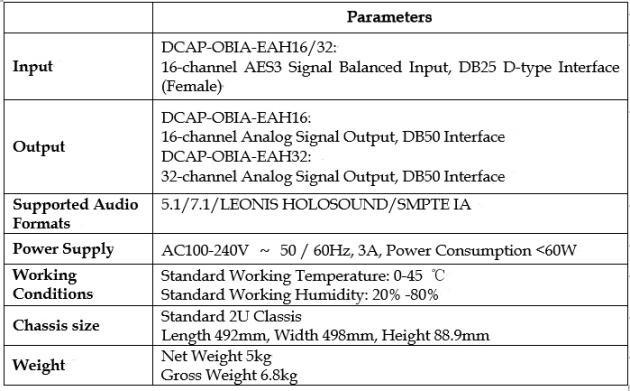

4. DCAP-OBIA-EAH Parameters
